Unify (Siemens) HiPath 4000

These instructions help you configure your Siemens HiPath 4000 phone system to work with TIM Plus. Contact your system maintainer if you are not familiar with the configuration of your PBX.

Support files​

Ensure the following support files exist in the /config/ folder of the TIM Plus application:

Siemens HiPath 4000.TDS
Siemens HiPath 4000.TDT

Contents​

Configure the SMDR output​

info

You may need to purchase a license to enable SMDR on this PBX. Please speak to your system maintainer if you are unsure.

By default, the SMDR output of a Siemens HiPath 4000 is not enabled.  To enable it for incoming, outgoing and internal calls, contact your system maintainer.

Configure TIM Plus​

Follow the steps below to configure TIM Plus to connect to your Siemens HiPath 4000:

  1. Click on the Directory tab.
  2. If you don't have a site set up, press Add and select PBX from the drop-down menu. In the dialogue window, name your site and then select Add.

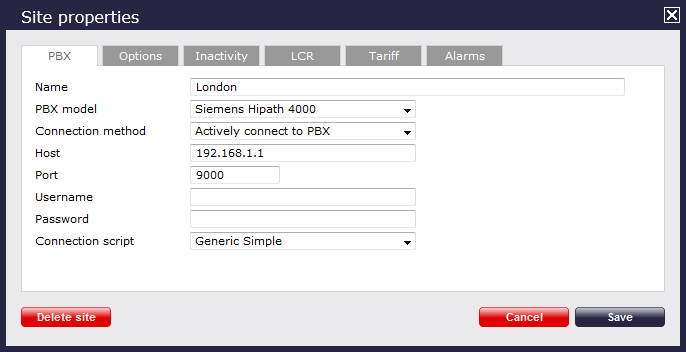

  3. Locate the site object you want to configure in the Directory, click on it and select Properties. siemens_hipath_4000_1
  4. In the Site Properties window, select Siemens HiPath 4000 from the PBX model drop-down list.
  5. In the Connection method field, select Actively connect to PBX from the drop-down list.
  6. In the Host field, enter the IP address of your Siemens HiPath 4000.
  7. In the Port field, enter 9000.
  8. Leave the Username and Password fields blank.
  9. In the Connection script field, select Generic Simple from the drop-down list.
  10. Click on the 'Options' tab and tick the Keep a local backup of any data tickbox, as shown below TIM Plus PBX backup options
  11. Click on the Save button to apply the settings.
